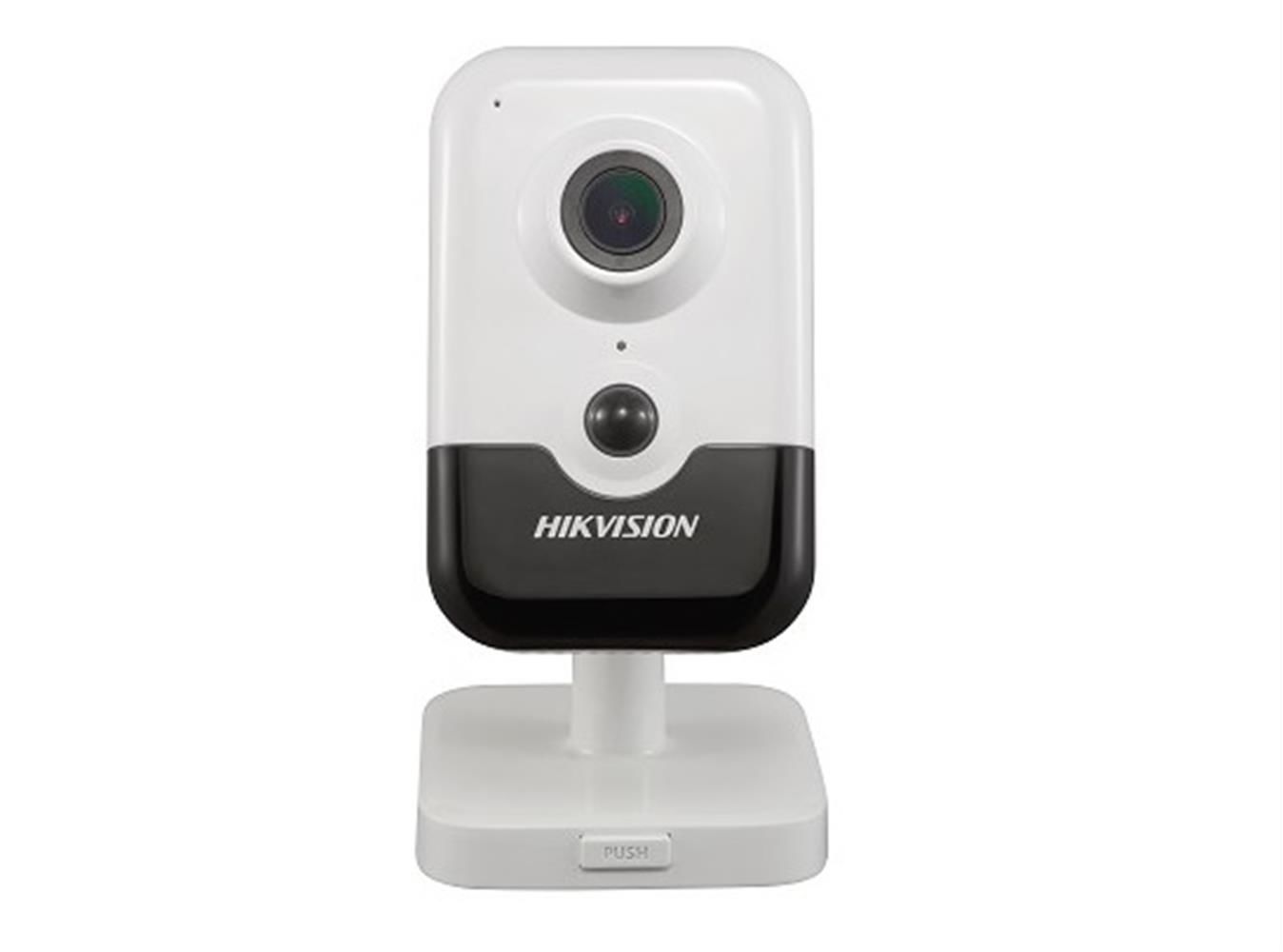

Hikvision DS-2CD2443G2-IW 4MP 2.8mm IR Cube Kamera (Wi-Fi + Sesli, H.265+).

Hikvision DS-2CD2443G2-IW 4MP 2.8mm IR Cube Kamera (Wi-Fi + Sesli, H.265+).

Hikvision DS-2CD2443G2-IW 4MP 2.8mm IR Cube Kamera (Wi-Fi + Sesli, H.265+).

Kategori

Ip Kameralar

Marka

HIKVISION

Stok Kodu

700.20.10.0160

0 Yorum

Tüm Özellikler

2.393,75 TL

239,81 TL den başlayan taksitlerle!!

Sepete Ekle

Karşılaştır

4 MP AcuSense Built-in Mic Fixed Cube Network Camera

High quality imaging with 4 MP resolution
Clear imaging against strong backlight due to 120 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Provide real-time security via built-in two-way audio
Detect human body through passive infrared which is sensitive to body temperature (PIR)

Kamera
Image Sensor1/3" Progressive Scan CMOS
Max. Resolution2688 × 1520
Min. Illumination
2 mm: : 0.008 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR

2.8 mm and 4 mm: : 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens
Focal Length & FOV
2 mm, horizontal FOV 128.4°, vertical FOV 75.4°, diagonal FOV 147.1°

2.8 mm, horizontal FOV 104.3°, vertical FOV 55.9°, diagonal FOV 123.8°

4 mm, horizontal FOV 83.7°, vertical FOV 43°, diagonal FOV 100.3°
Aperture
2 mm: F2.0

2.8 mm: F1.6

4 mm: F1.6
Lens MountM12

DORI
DORI
2 mm: D: 45.5 m, O: 18.0 m, R: 9.1 m, I: 4.5 m

2.8 mm: D: 56.0 m, O: 22.2 m, R: 11.2 m, I: 5.6 m

4 mm: D: 79.4 m, O: 31.5 m, R: 15.9 m, I: 7.9 m

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 10 m
IR Wavelength850 nm
Smart Supplement LightYes

Video
Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265/H.264/H.264+/H.265+

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR/VBR
Scalable Video Coding (SVC)
Yes
Region of Interest (ROI)1 fixed region for main stream and sub-stream

Audio
Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Network
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
User/Host
Up to 32 users

3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage
NAS (N F S, SMB/CIFS),Auto Network Replenishment (ANR),

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClientiVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Wide Dynamic Range (WDR)120 dB
Privacy Mask4 programmable polygon privacy masks
Day/Night SwitchDay, Night, Auto, Schedule
Image EnhancementBLC, HLC, 3D DNR
Image Parameters SwitchYes
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Transducer
Detection AngleHorizontal: 90°, vertical: 80°
Transducer TypePIR
Detection RangeUp to 8 m

Interface
Built-in MicrophoneYes
Built-in SpeakerPower: 1 W. Max. sound pressure level: 10 cm: 91 dB.
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset KeyYes
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart EventFace detection
LinkageUpload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email, audible warning

Deep Learning Function
Perimeter Protection
Line crossing, intrusion

Support alarm triggering by specified target types (human and vehicle)

General
Power
12 VDC ± 25%, 0.49 A, max. 5.8 W, Ø5.5 mm coaxial power plug

PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 6.8 W
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionHeartbeat, mirror, password reset via email, pixel counter, anti-banding
Storage Conditions-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
MaterialPlastic
Dimension
2 mm: 102.9 mm × 65.2 mm × 28.8 mm (4.1" × 2.6\" × 1.1\")

2.8 mm and 4 mm: 102.9 mm × 65.2 mm × 32.6 mm (4.1 × 2.6\" × 1.3\") "
Package Dimension150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9")
WeightApprox. 120 g (0.3 lb.)
With Package WeightApprox. 430 g (0.9 lb.)

Approval
EMC
FCC SDoC (47 CFR Part 15, Subpart B);

CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);

KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 62368-1);

CB (IEC 62368-1:2014+A11);

CE-LVD (EN 62368-1:2014/A11:2017)
Environment
CE-RoHS (2011/65/EU);

WEEE (2012/19/EU);

Reach (Regulation (EC) No 1907/2006)
