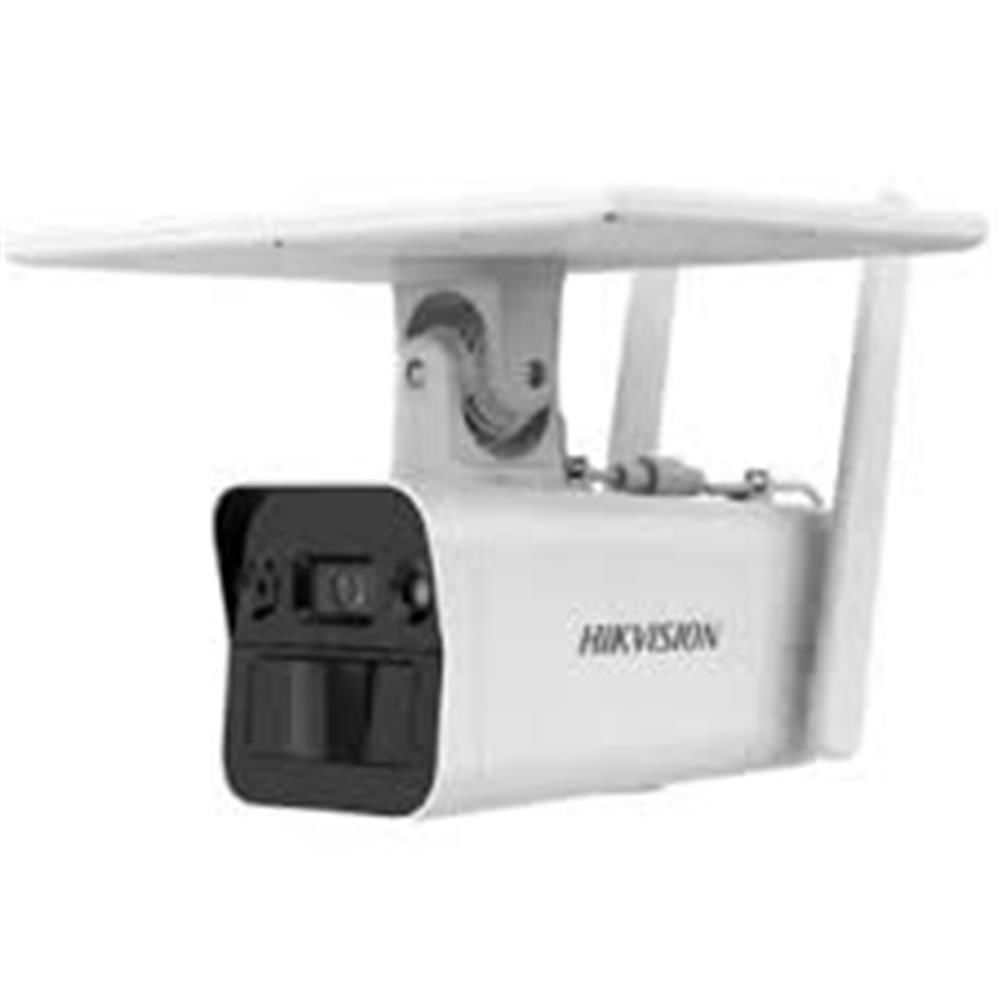

Hikvision DS-2XS2T41G1-ID-4G 4Mp 4mm Solar Panel 4G Ip Bullet Kamera

Hikvision DS-2XS2T41G1-ID-4G 4Mp 4mm Solar Panel 4G Ip Bullet Kamera

Hikvision DS-2XS2T41G1-ID-4G 4Mp 4mm Solar Panel 4G Ip Bullet Kamera

Kategori

Ip Kameralar

Marka

HIKVISION

Stok Kodu

700.20.10.0297

0 Yorum

Tüm Özellikler

7.647,60 TL

766,16 TL den başlayan taksitlerle!!

Sepete Ekle

Karşılaştır

Bugün sipariş verirseniz: 19 Haziran 2025 Kargoya verilmiş olur!

4MP Solar-powered Security Camera Setup

High quality imaging with 4 MP resolution
Standalone with solar panel and built-in battery
Support human and vehicle detection
Provide real-time security via built-in two-way audio
Water and dust resistant (IP67)
Support 4G (LTE-TDD/LTE-FDD/TD-SCDMA) communication

Camera
Image Sensor1/3" Progressive Scan CMOS
Max. Resolution2560 × 1440
Min. IlluminationB/W: 0.01 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentSolar panel: tilt: -45° to 45°, rotate:-30° to 30°

Lens
Lens TypeFixed focal lens, 4 and 6 mm optional
Iris TypeFixed
Aperture4mm: F1.28, 6mm: F1.6
Depth of Field
4 mm: 2.7 m to ∞

6 mm: 5.9 m to ∞
Focal Length & FOV
4 mm, Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°

6 mm, Horizontal FOV: 49°, Vertical FOV: 26°, Diagonal FOV: 57°
Lens MountM12

DORI
DORI
4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

6 mm, D: 128 m, O: 50 m, R: 25 m, I: 12 m

Illuminator
Supplement Light TypeIR
Supplement Light RangePerformance mode: up to 30 m, proactive mode: up to 10 m
IR Wavelength850 nm
Smart Supplement LightYes

Video
Main Stream
50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265/ H.264,

Sub-stream: H.265/H.264/MJPEG,

H.264+ and H.265+: main stream supports under performance mode
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Region of Interest (ROI)1 fixed region for main stream
Scalable Video Coding (SVC)H.264 and H.265 encoding

Audio
Audio Sampling Rate8 kHz/16 kHz
Environment Noise FilteringYes
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Network
SecurityPassword protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
Simultaneous Live ViewUp to 6 channels
APIISAPI,SDK
ProtocolsTCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
User/Host
Up to 32 users

3 user levels: administrator, operator, and user
Network StorageAuto Network Replenishment (ANR)
ClientiVMS-4200,Hik-Connect,Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+,

Local service: Chrome 57.0+, Firefox 52.0+

Mobile Communication
SIM Card TypeMicro SIM
Uplink and Downlink Data RateCat 4, uplink: 50 Mbps, downlink: 150 Mbps
Frequency
EU:

LTE-TDD: B38/B40/B41

LTE-FDD: B1/B3/B5/B7/B8/B20/B28

WCDMA: B1/B5/B8

GSM: B3/B5/B8

LA:

LTE-TDD: B38/B40

LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B28/B66

WCDMA:B1/B2/B3/B4/B5/B8

GSM: B2/B3/B5/B8
StandardLTE-TDD,LTE-FDD,WCDMA,GSM

SNR≥ 52 dB
Wide Dynamic Range (WDR)Digital WDR
Day/Night SwitchDay,Night,Auto,Schedule
Image EnhancementBLC,HLC,3D DNR
Image SettingsSaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Transducer
Transducer TypePIR + Radar
Detection Angle4 mm : Horizontal: 80°, vertical: 42°,6 mm:Horizontal: 50°, vertical: 22°
Detection RangeUp to 12 m

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in eMMC storage, up to 8 GB,

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB,For eMMC storage, 5 GB is available for recording.
Built-in MicrophoneYes
Built-in SpeakerYes
Reset KeyYes

Event
Basic Event Motion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error
Linkage

Upload to NAS/memory card,notify surveillance center,trigger recording,trigger capture,audible warning

General
Power
Power Consumption and Current:

Typical power scenarios: 1.85 W (4G working)

Standby scenarios: 80 mW

Max. power consumption: 7 W

Power Supply:

12 VDC

*For debugging only

6.5 W (deviation: ± 1 W) Solar panels

Power Interface:

Power supply interface: Ø5.5 mm coaxial power plug

Extened solar panel: Ø5.5 mm coaxial power plug
MaterialPlastic
Storage Conditions0 °C to 50 °C (32 °F to 122 °F). Humidity 95% or less (non-condensing)
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionHeartbeat,mirror,flash log
Startup and Operating Conditions0 °C to 50 °C (32 °F to 122 °F). Humidity 95% or less (non-condensing)
Dimension213.7 mm × 292.4 mm × 188.7 mm (8.4" × 11.5" × 7.3")
Package Dimension345 mm × 240 mm × 292 mm (13.6" × 9.4" × 11.5")
Weight

Approx. 1.42 kg (3.1 lb.)
With Package Weight

Approx. 2.07 kg (4.6 lb.)

Battery
Battery TypeTernary Lithium
Capacity51.46 Wh
Max. Charging Voltage12.6 V
Operating Temperature
Charging: 0 °C to 45 °C (32 °F to 113 °F)

Discharging: -20 °C to 50 °C (-4 °F to 122 °F)
Battery Voltage 8.1 V to 12.6 V
Battery LifeMore than 800 cycles
Cycle Lifetime

Proactive mode: 1.5 days,

Standby mode: 11 days
Battery WeightApprox. 185 g (0.4 lb.)

Approval
EMC

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

RCM: AS/NZS CISPR 32: 2015,

*CE and RCM certifications are only for the device sold in the European region.
RF
CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G)

*CE certification is only for the device sold in the European region.
Safety

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

LOA: IEC/EN 60950-1,

*CE and LOA certifications are only for the device sold in the European region.
Environment
CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006,

*CE certification is only for the device sold in the European region.
ProtectionIP67: IEC 60529-2013
